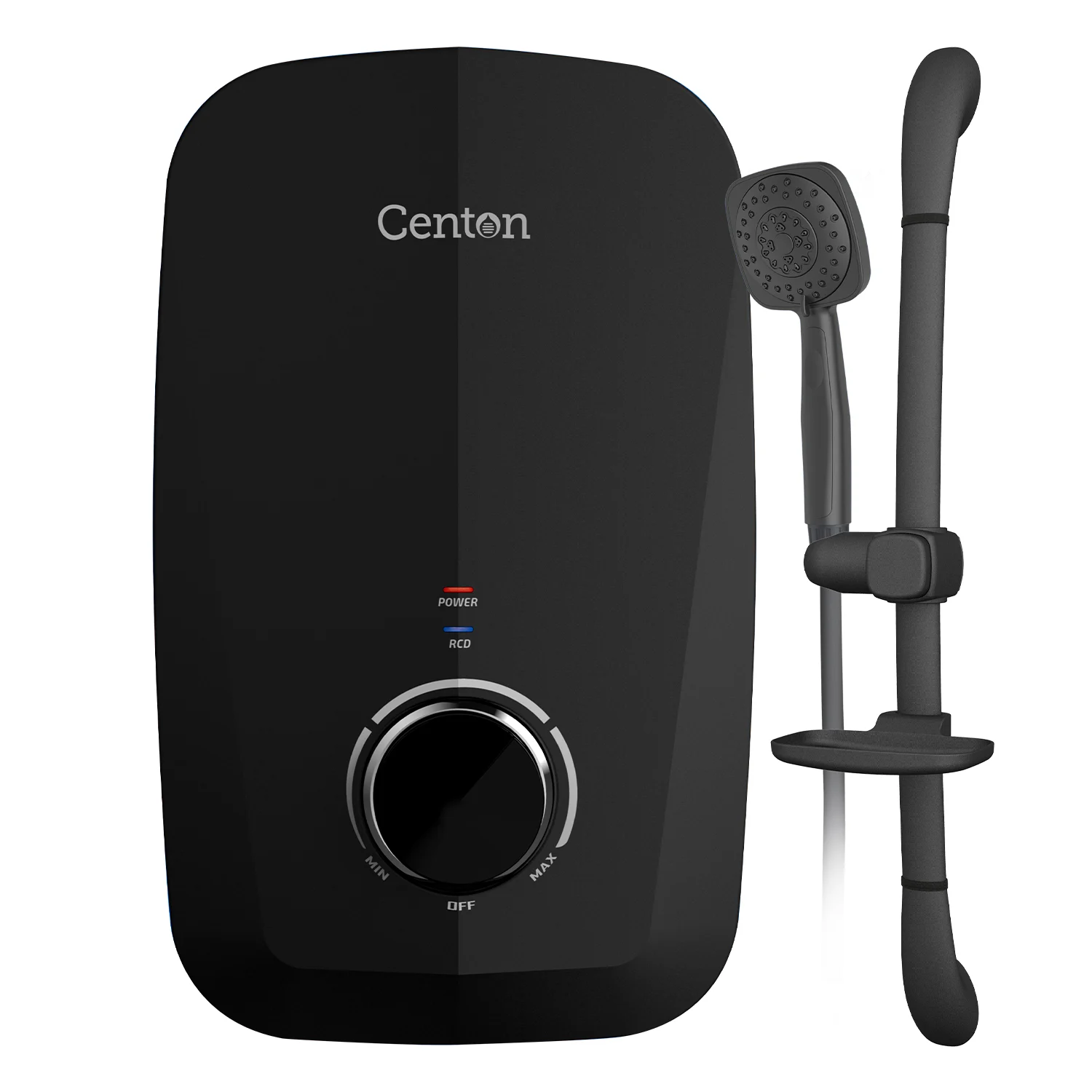

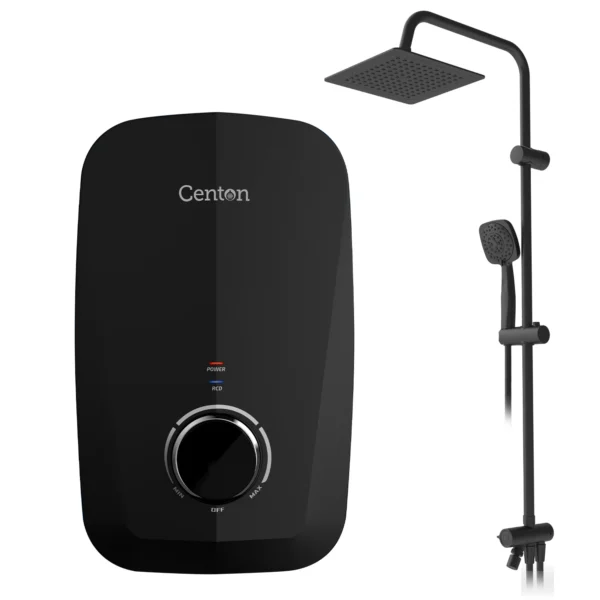

Atlantis Series Instant Water Heater

[NEW] Pump Activator | Momentarily jump starts the Built-in DC Silent Pump when the bathroom’s water flow is too low to turn on the water heater’s flow switch.
Multi-Spray Hand Set | Allows users to select from 5 shower hand set options for preferred shower spray pattern and optimum shower sensation.
Built-in DC Silent Pump | Silent yet powerful, equipped with an advanced 3-phase brushless DC motor that generates high flow rate and consumes 50% less electrical power than typical AC motors.
Built-in RCD | Life-saving device that automatically cuts off power supply in the event of current leakage, protecting users from electric shock.
Built-in Voltage Surge Protector | Protects internal electrical circuits from electrical surges and voltage spikes, including those caused by lightning.
Built-in Flow Sensor | Automatically cuts off power supply when water flow is less than the rated flow, preventing internal overheating.
Double Function Thermostat | Features an additional manual reset function in the event of abnormal temperature rise, protecting users from the risk of scalding.
Triple Function Right Angle Stop Valve | Smooth 90° water flow control valve with regulator and built-in mesh filter to prevent foreign particles from entering the heating element, thus avoiding unwanted damages and blockages.

Heater Electrical Rating	4.2kW, 240Vac, 50Hz
Minimum Water Flow Rate	2 litre / min
Maximum Water Pressure	3.87kg f/cm² (55psi)
Water Temperature Control	Electronic Control
Water Connection	15mm dia. (1/2″ BSP)
Dimension	246mm x 376mm x 98mm (H)
Weight – AC Pump	5.7kg
Weight – DC Pump	5.3kg
AC Pump Electrical Rating (Motor)	120W, 220V – 240Vac
DC Pump Electrical Rating (Motor)	50W, 24Vdc
Manufactured in	Malaysia: ISO 9001:2015 (Quality) & ISO 14001 (Environmental) certified factory
Product Certification	SIRIM & Suruhanjaya Tenaga certified appliance
Product Liability Insurance	RM1,000,000.00
