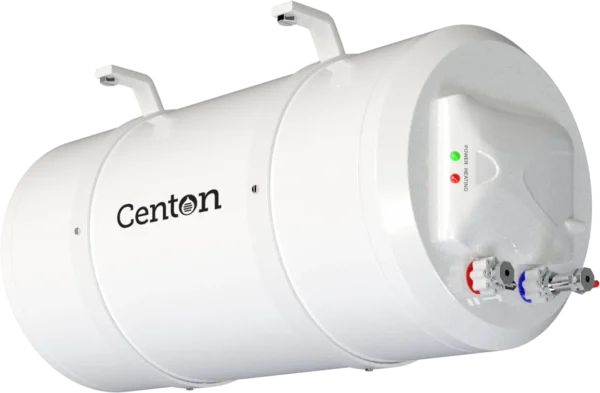

CENTON’S NEW GENERATION ABOVE CEILING STORAGE WATER HEATER
The Neptune Series with Blue Diamond Enamel-coated tank technology, giving you a storage water heater with longer lifespan, improved leak resistance & better heat insulation, compared to conventional storage water heater!
 |
 |
|
 |
 |
|
 |
 |
 |
Blue Diamond Enameled Tank The ultimate protection that provides several times the rust and corrosion resistance compared to standard inner tank designs. |
 |
Single Welding Technology Improved leak resistance thanks to minimal connecting joints, maximizing damage protection caused by high pressure. |
 |
Super-alloy Heating Element Incoloy 840 heating element that offers superior heating performance with extended lifespan and minimum energy losses. |
 |
Energy Saving High Density Foam Insulation CFC-free, environmental-friendly polyurethane (PUF) insulation design, with complete protection against radiant heat loss. |
 |
Heavy Duty Anode Rod Magnesium anode with steel core that protects the Blue Diamond Enameled Tank and heating element from rust and corrosion. |
 |
Thermostat and Thermal Cut-off Dual-layer protection against overheating and over-pressure. |
 |
High Strength and Durable Body Material Made of SPCC or Cold Rolled Steel for excellent structural integrity and long service life. |
 |
Whirlflow Technology Water Tubes Smart water tubes system ensures no immediate direct contact between cold and hot water for maximum energy saving. |
INSTALLATION | Above Ceiling Multipoint
Multipoint Storage Water Heater that is installed above your bathroom ceiling, supplying hot water to multiple water outlets.
NEPTUNE SERIES is warranted to be free from defects under normal use for a period stated below from the date of purchase, as evidenced by the purchase receipt, where during the warranty period these parts shall be repaired or replaced if defective.
Anti-Leak Tank 6 years
Other E&E Parts 2 years
– GUIDE ON HOW TO REGISTER YOUR NEPTUNE SERIES WARRANTY –
| Capacity Options | 30 Litres, 50 Litres, 70 Litres, 90 Litres |
| Rated Power | 3,000W |
| Rated Current | 12.5A |
| Rated Voltage | 240V~ |
| Rated Frequency | 50Hz |
| Rated Water Temperature | 75°C |
| Rated Pressure | 0.8MPa |
| Minimum Start Pressure | 0.02MPa |
| Heating Efficiency | >90% |
| Waterproofing | IPX4 |
| Dimensions | 30 Litres: 505mm (L) x 380mm (D) 50 Litres: 705mm (L) x 380mm (D) 70 Litres: 935mm (L) x 380mm (D) 90 Litres: 1,020mm (L) x 410mm (D) |
| Weight | 30 Litres: 12.5kg (empty), 42.5kg (water-filled) 50 Litres: 16.3kg (empty), 66.3kg (water-filled) 70 Litres: 21.4kg (empty), 91.4kg (water-filled) 90 Litres: 25.4kg (empty), 115.4kg (water-filled) |
